Cellular Concrete Panel Designs
Every animation, plan, option page and estimate for the cellular-concrete panel system in one place. Animations open in the browser (no sign-in): press play or drag the timeline, orbit with the mouse, use the buttons for camera views and the section cut. The Claude links are private copies of the same pages.
Wall panel house — 40' × 28', 2 bed 2 bath
Same walls, two roof designs. The links below open the animation already set to that design; the switch in the control panel changes it live.

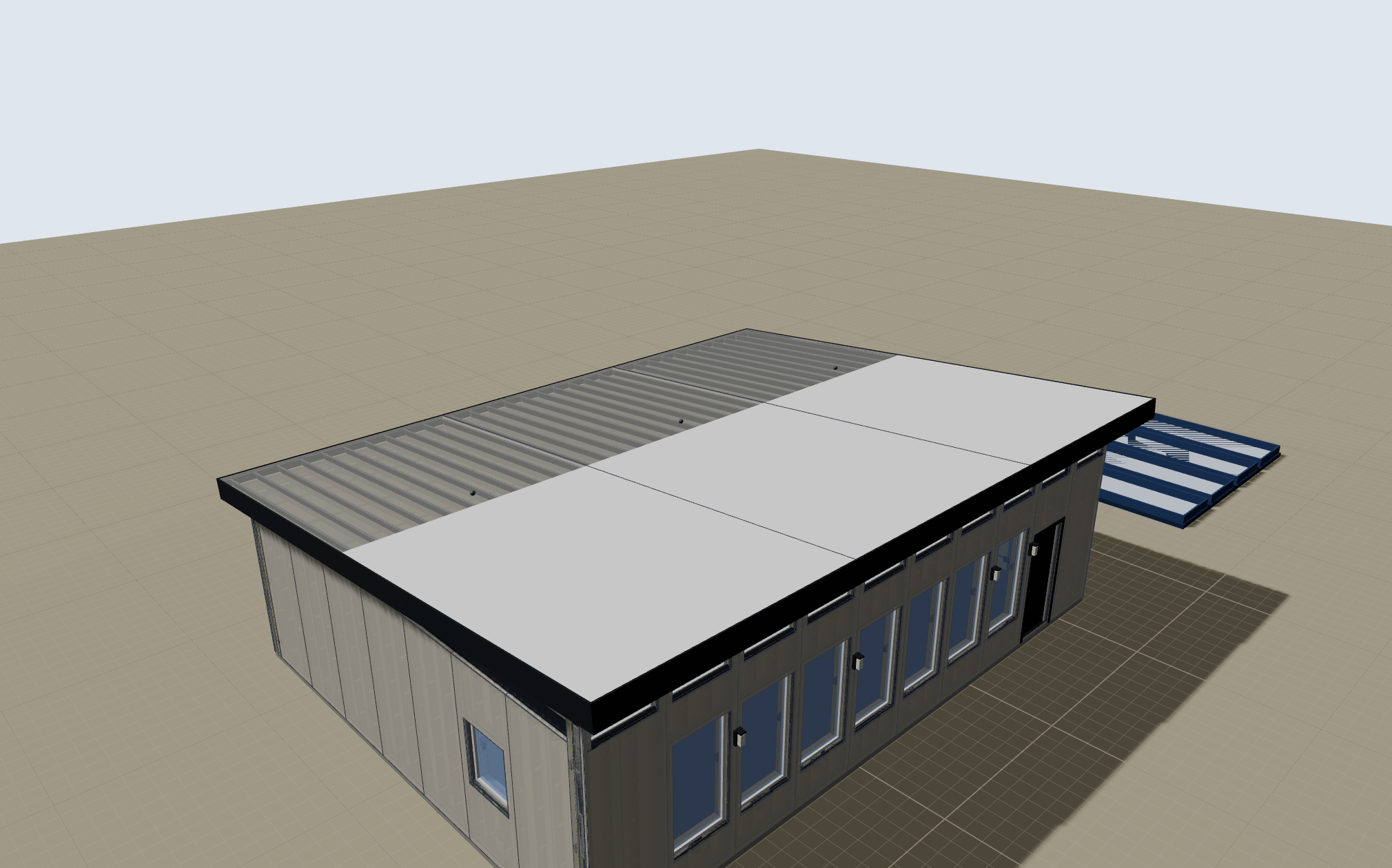

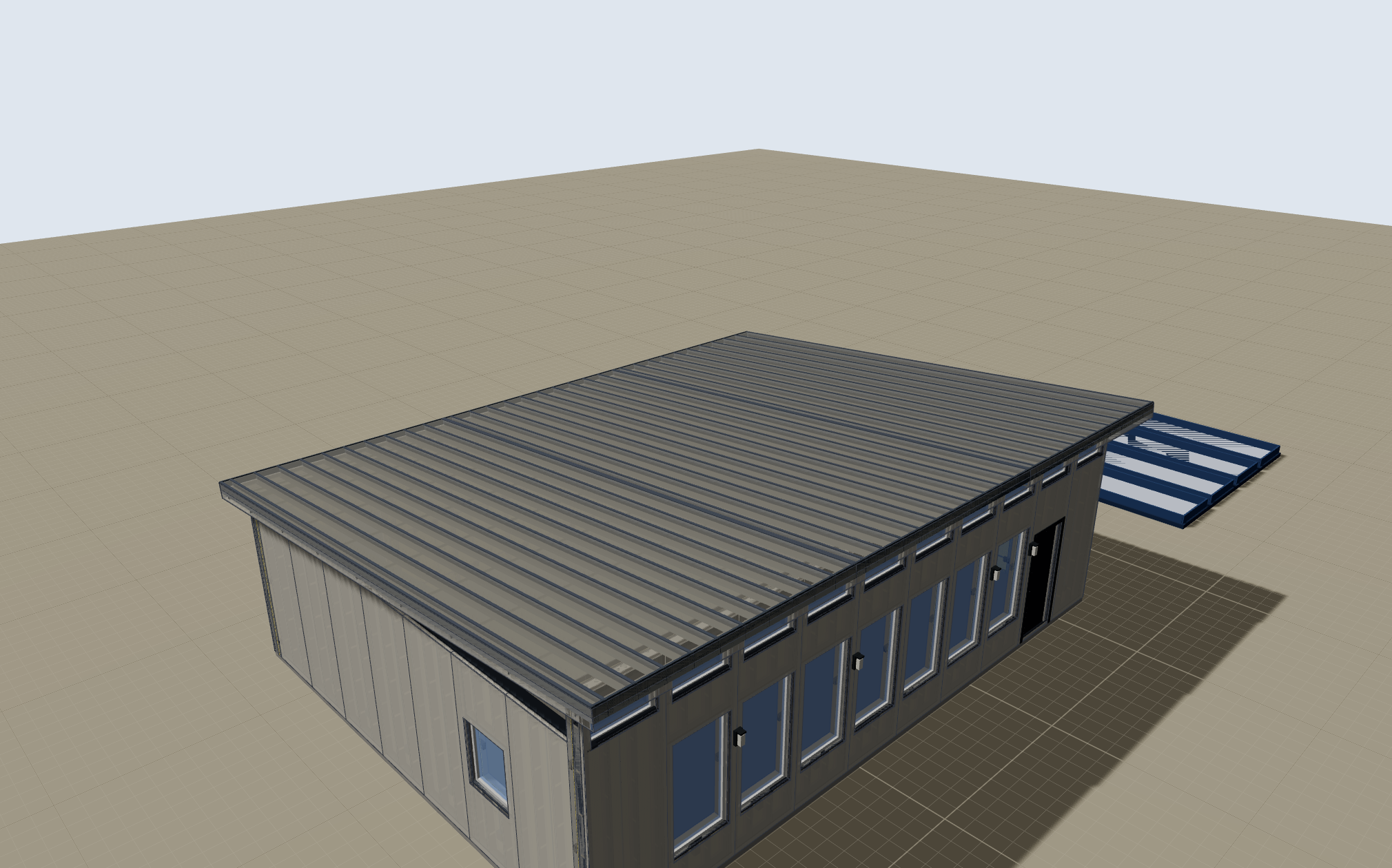

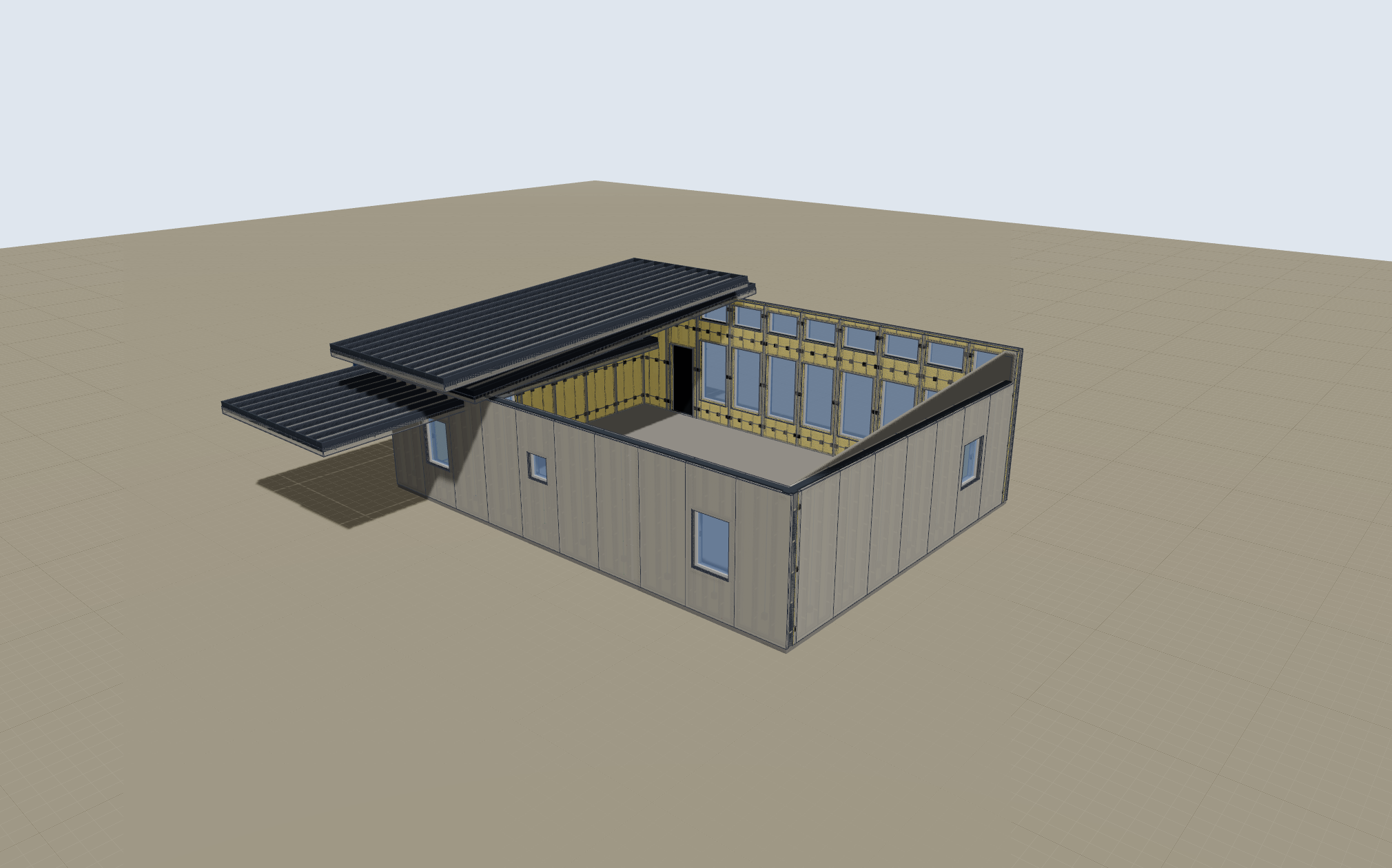

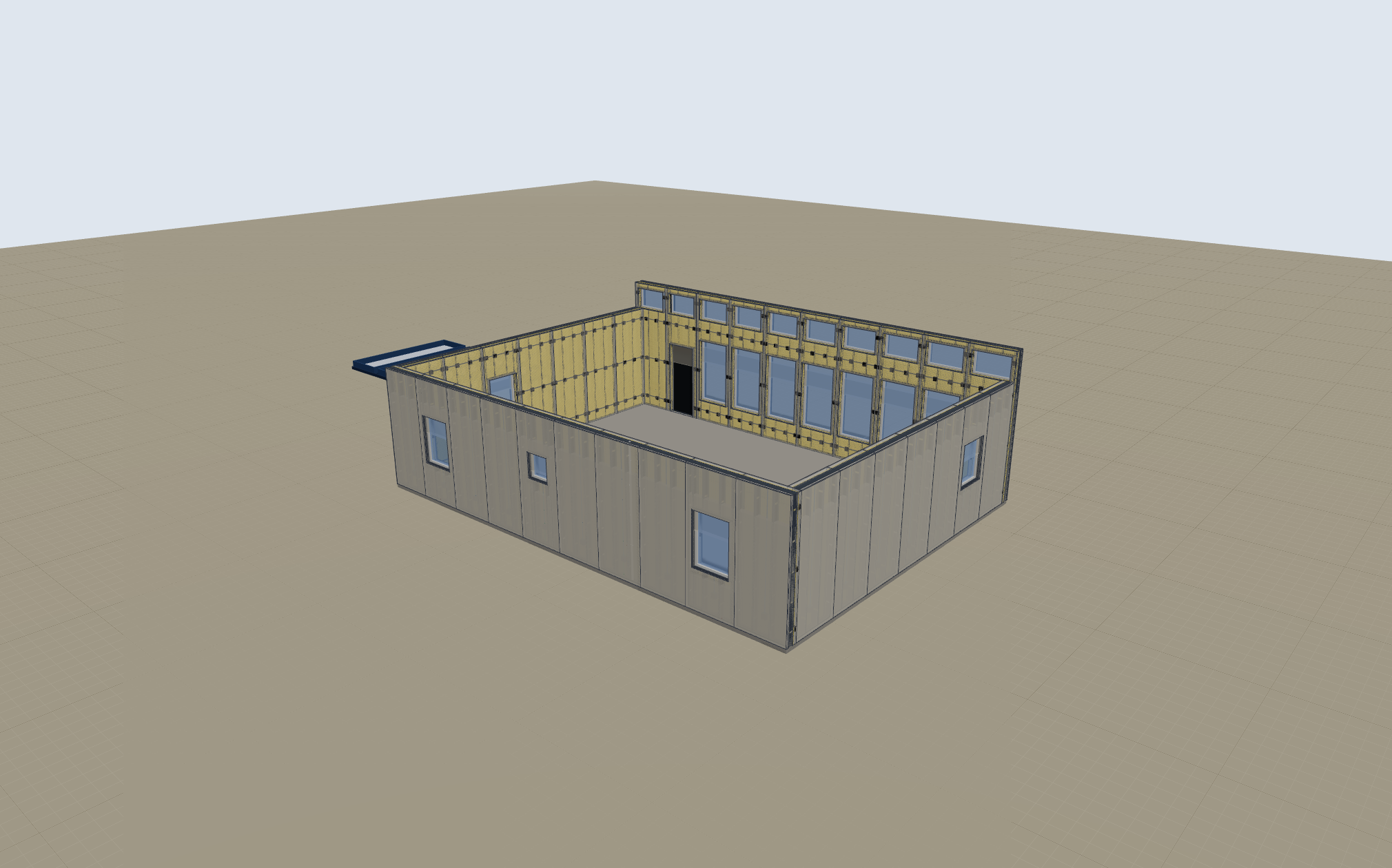

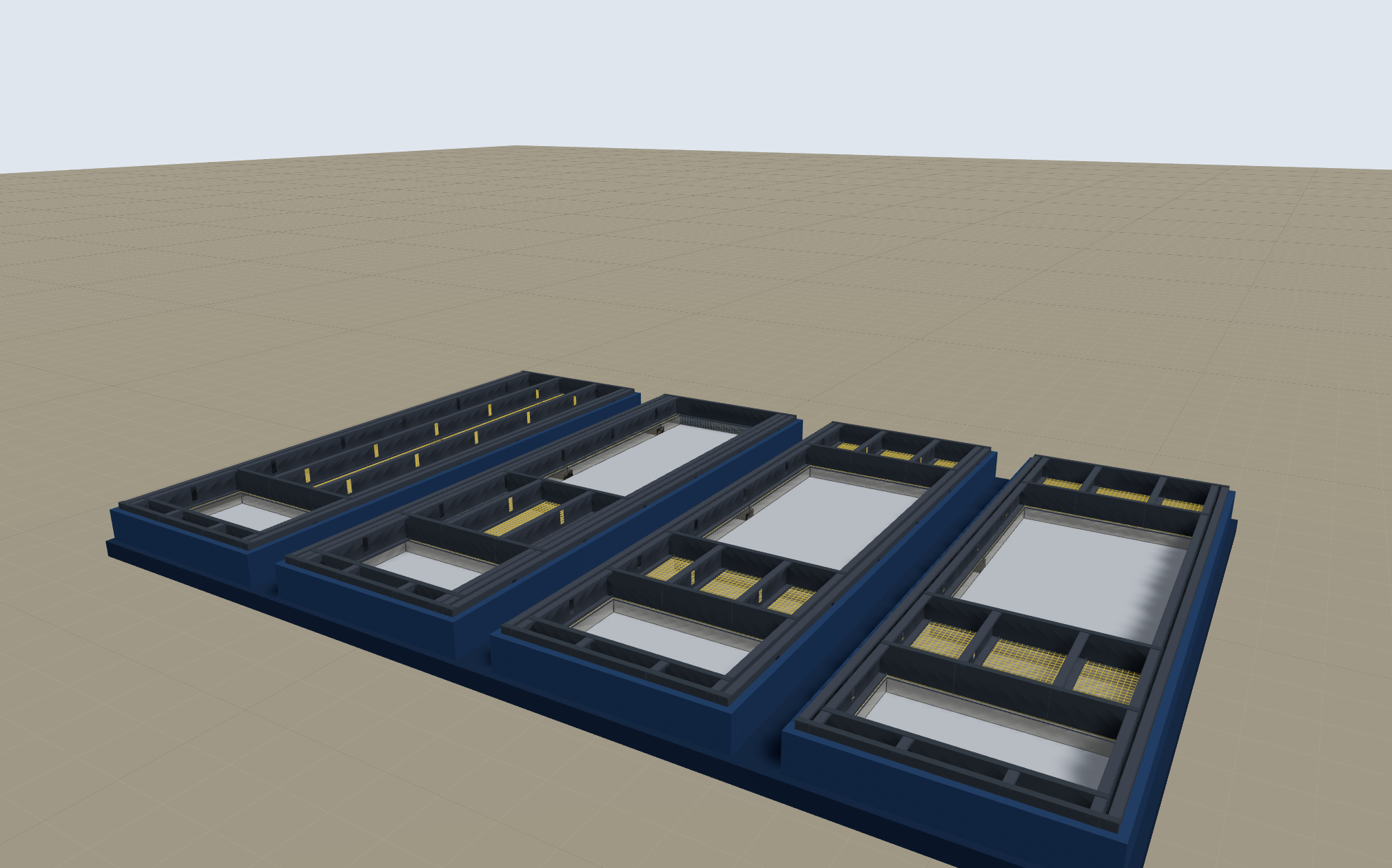

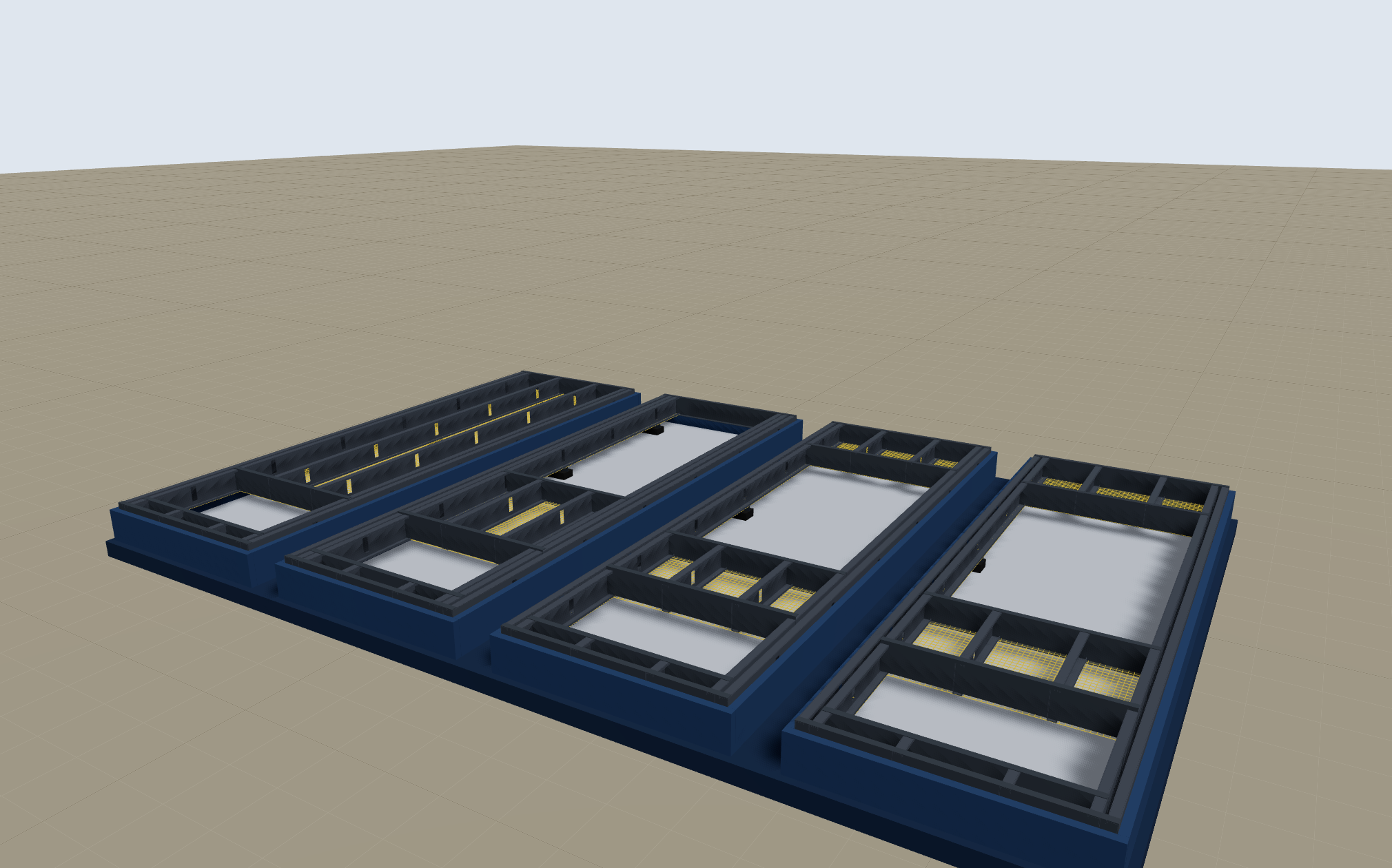

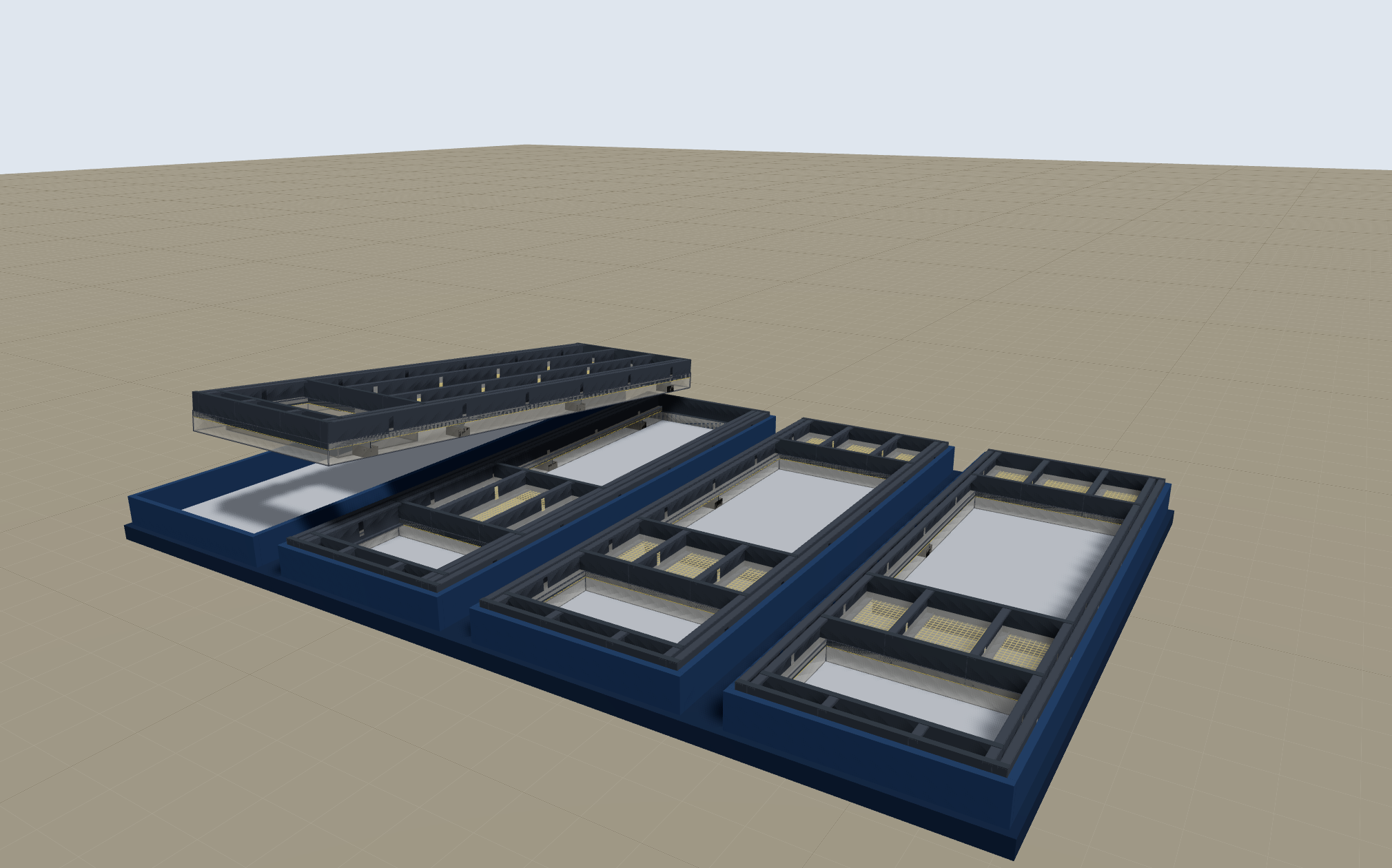

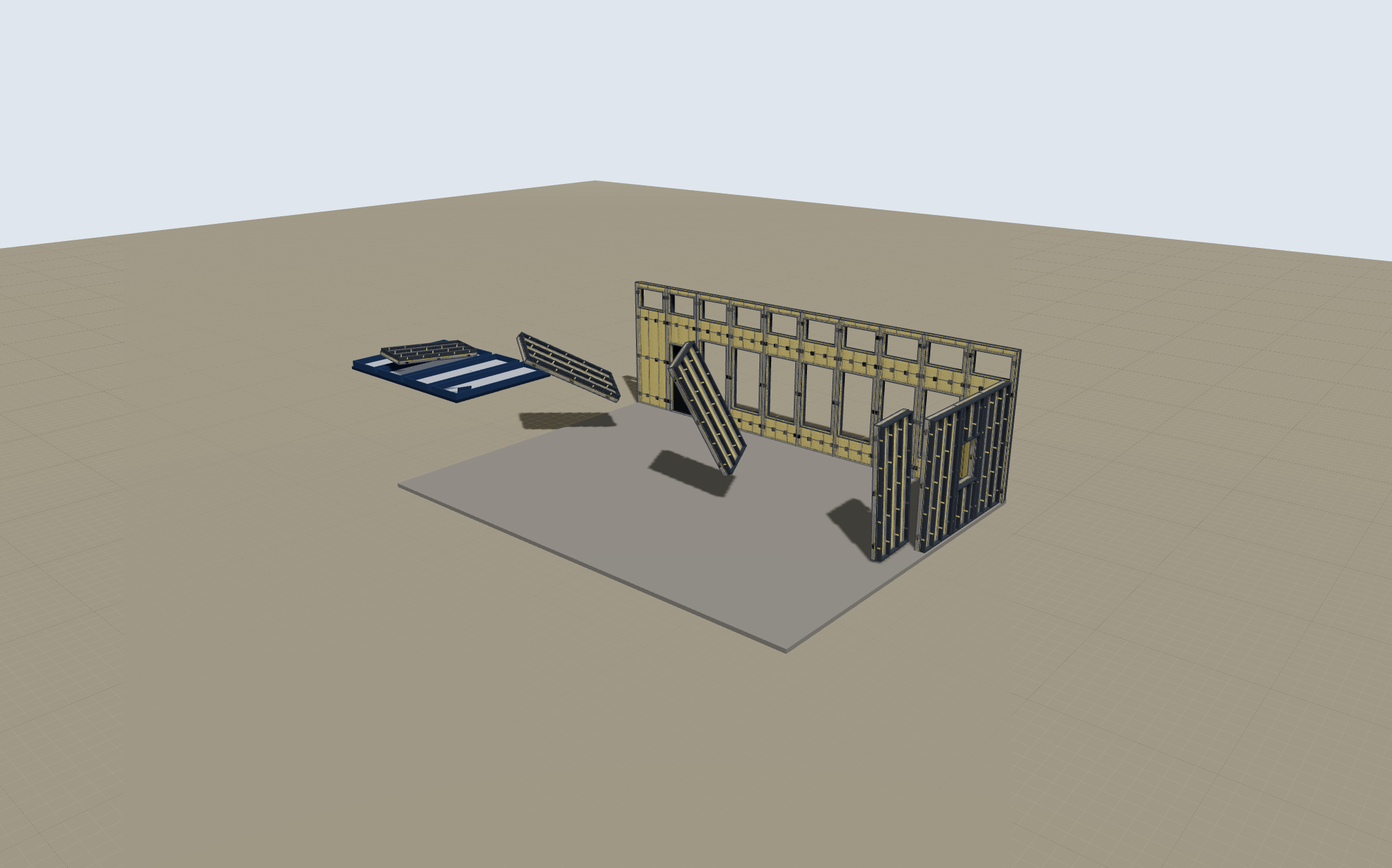

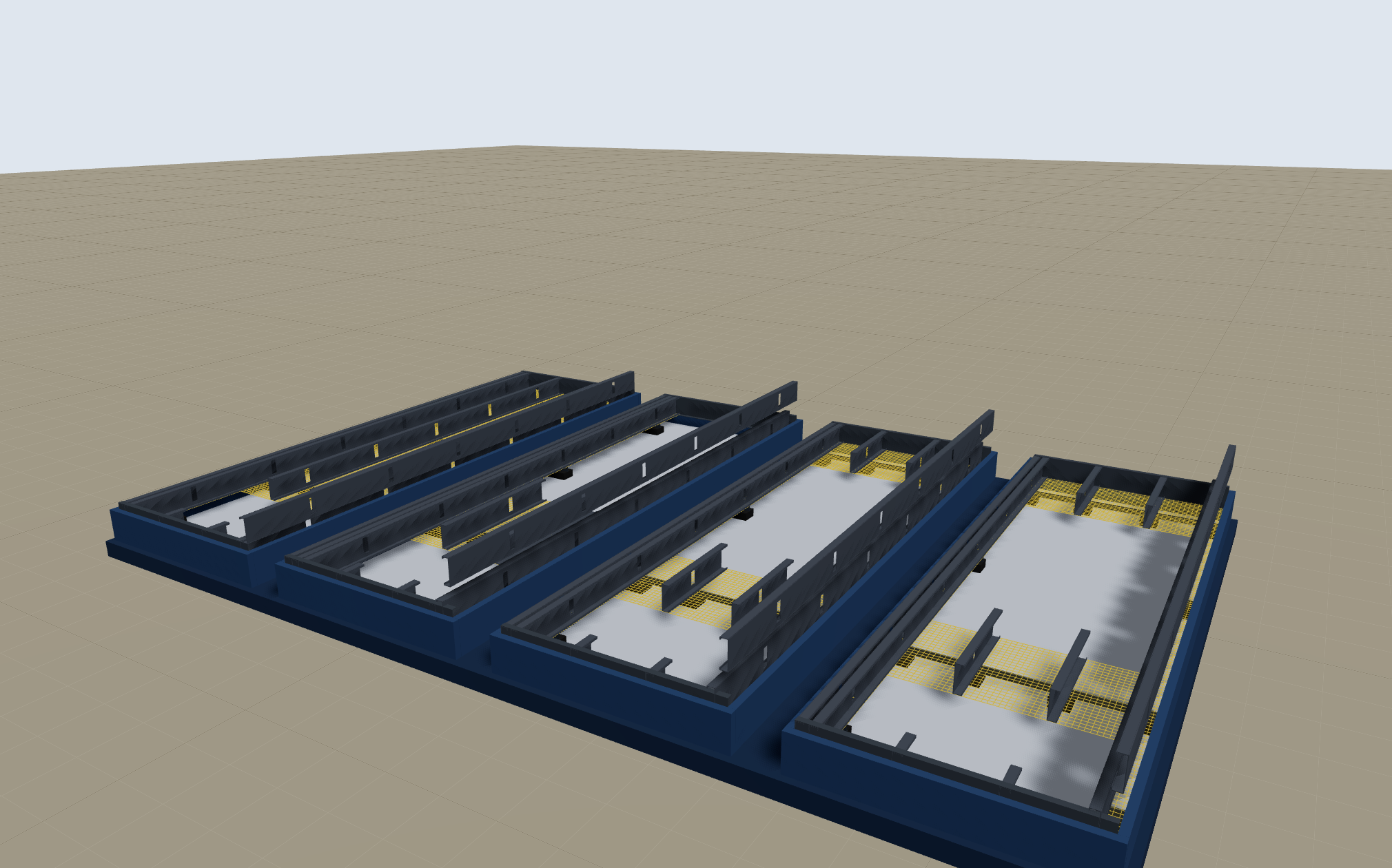

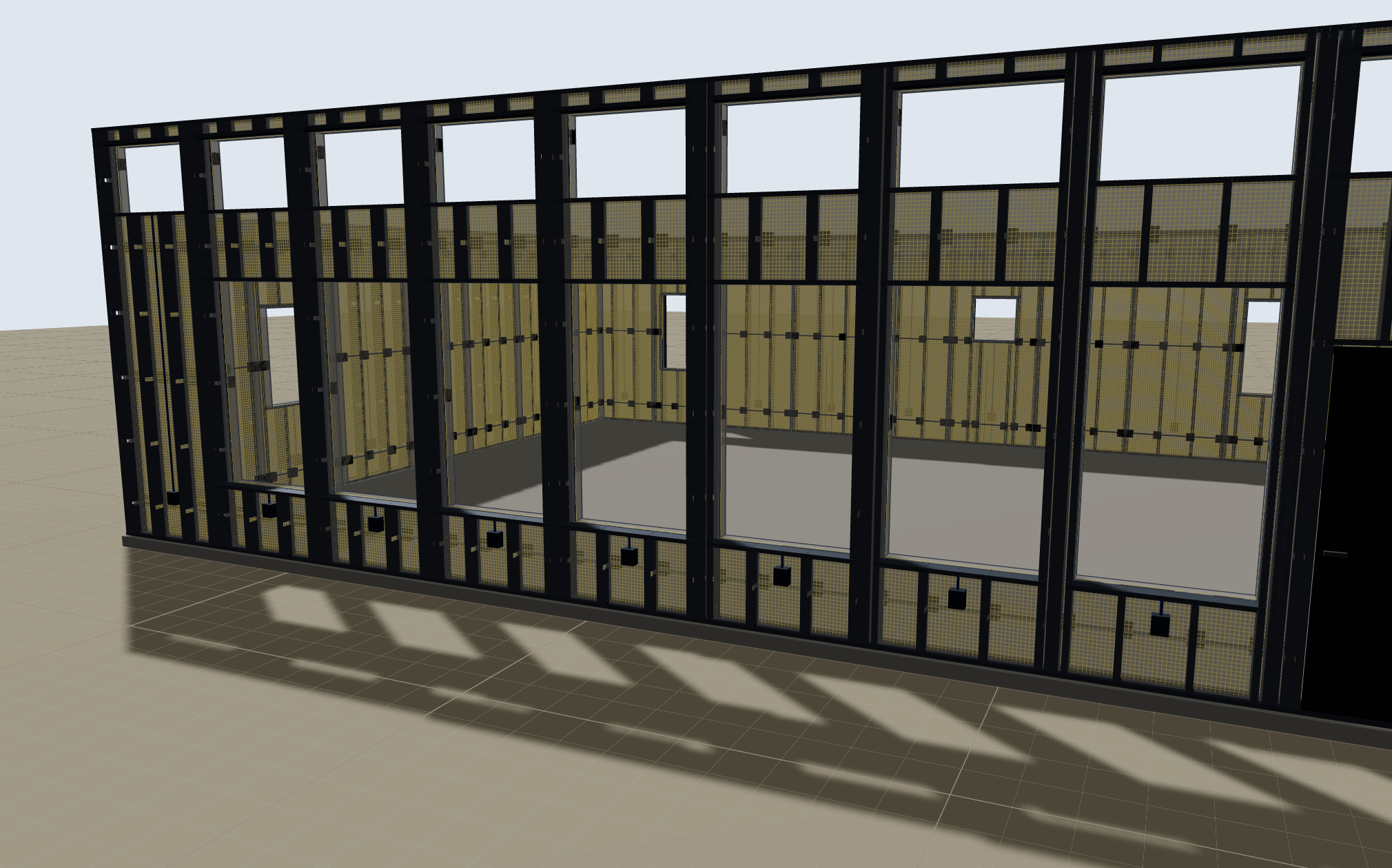

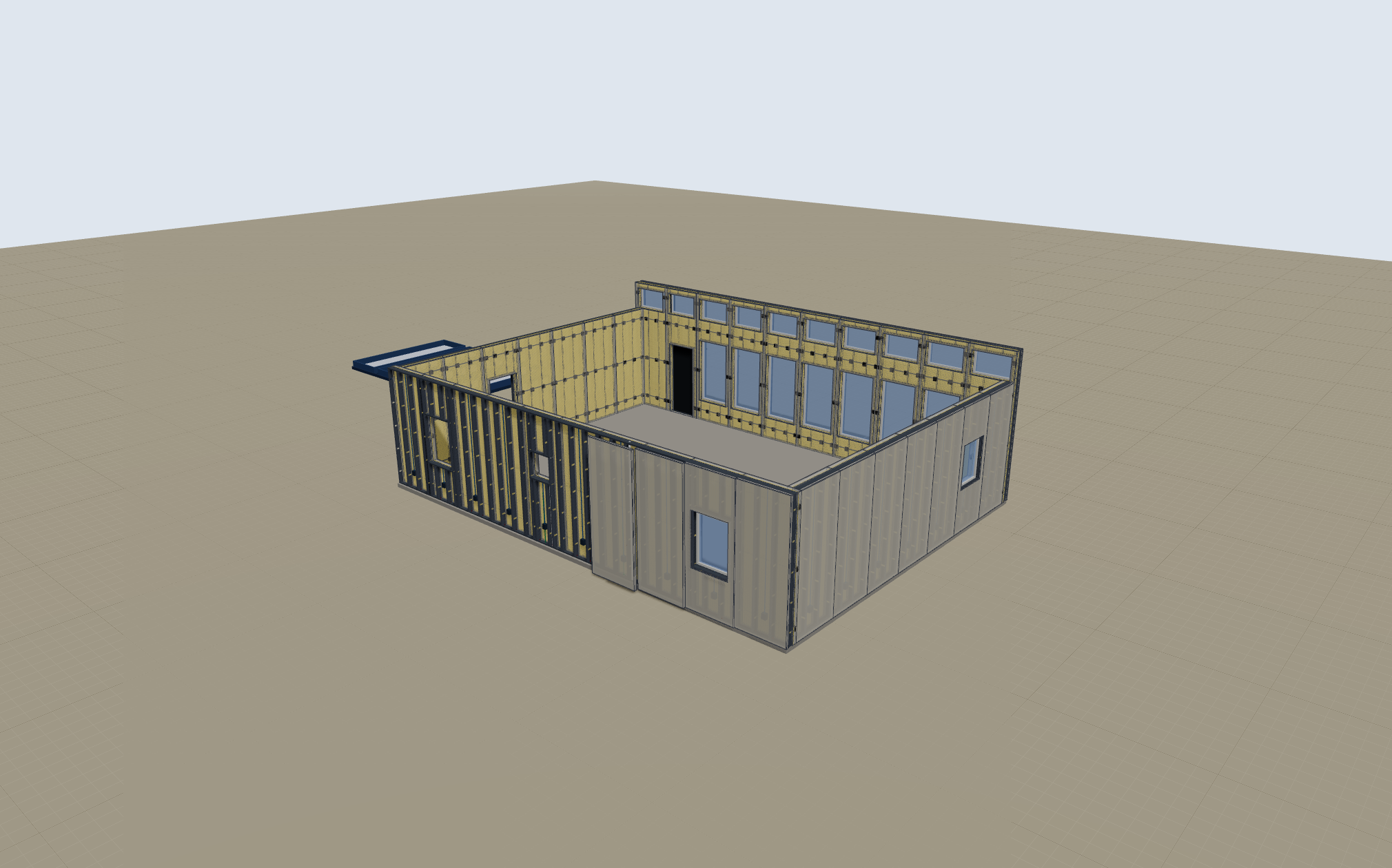

- Shed roof to the view (Option 3)Front wall raised to 12'-6" with a clerestory band over seven view windows; roof rises 1"/ft toward the front. Plays the full build from the casting bed to the membrane.

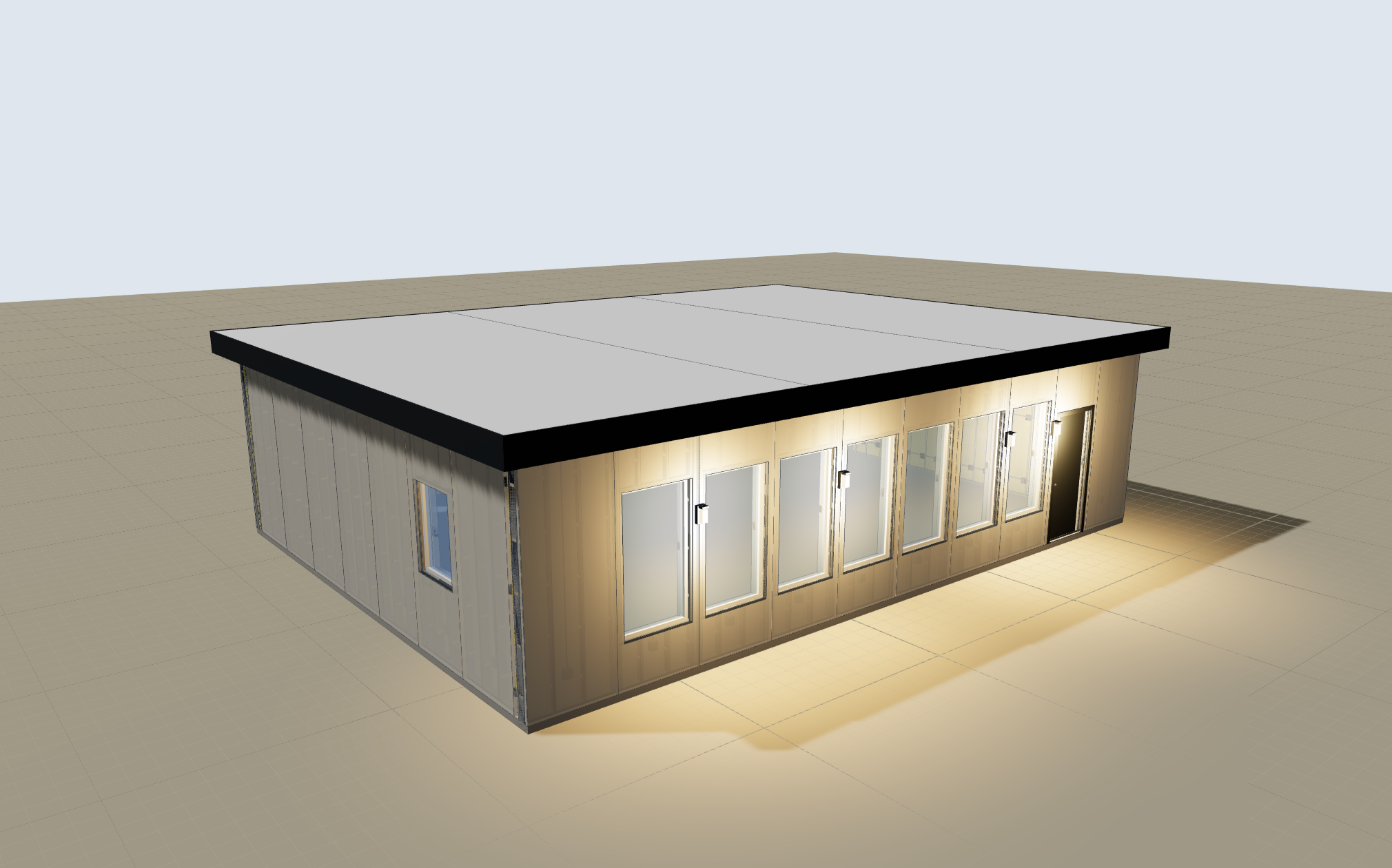

- Flat roof on 10' walls (Option 1)Same house with every wall at 10' and a low-slope roof; drainage built into the top pour.
- Walk-through of the floor planFirst-person tour through the rooms with captions, or walk freely with the keyboard. Opens on the shed design; switch designs in the page.
- Wall animation (Claude copy)Private artifact of the same animation with the design switch; sign-in needed.
Design and price your own house
Pick the size, roof design, rooms, windows, foundation, heating and finish level; the price updates as you go from the same cost basis as the estimate workbook. Four tabs: Price, Exterior (wall, trim, roof and door colours, door styles, window frames, lights, with a live 3D view and a saved rendering), Floor plan (drawn for the chosen size and rooms) and Walk-through. Every design gets its own link and an animation of the build.

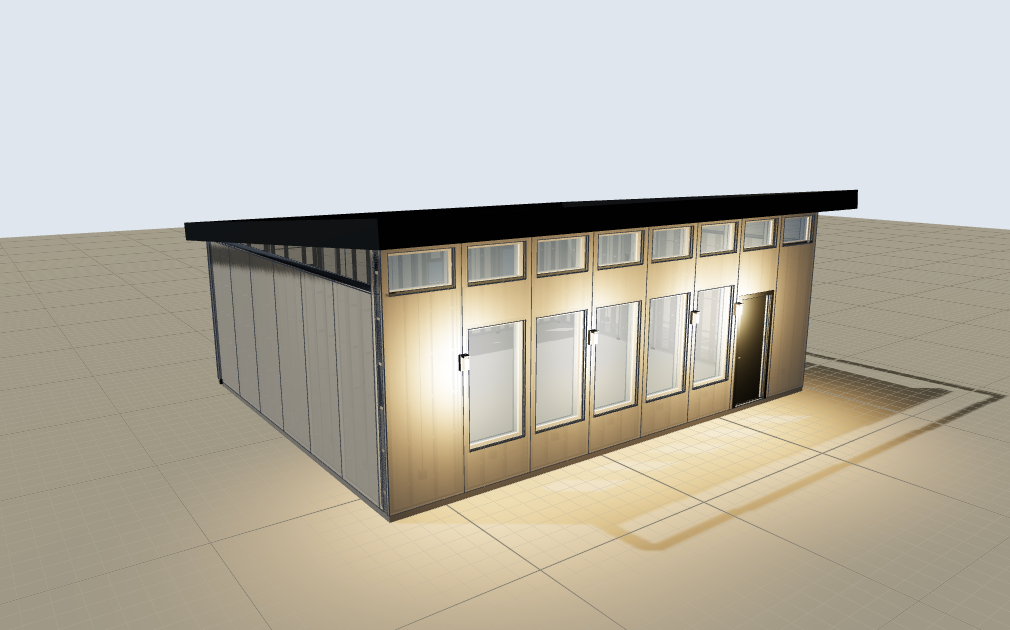

Renderings
Exterior renderings saved from the configurator (Render image on the Exterior tab). Natural grey is the cast cladding with no coat; every other colour is a coat priced on the Exterior tab.

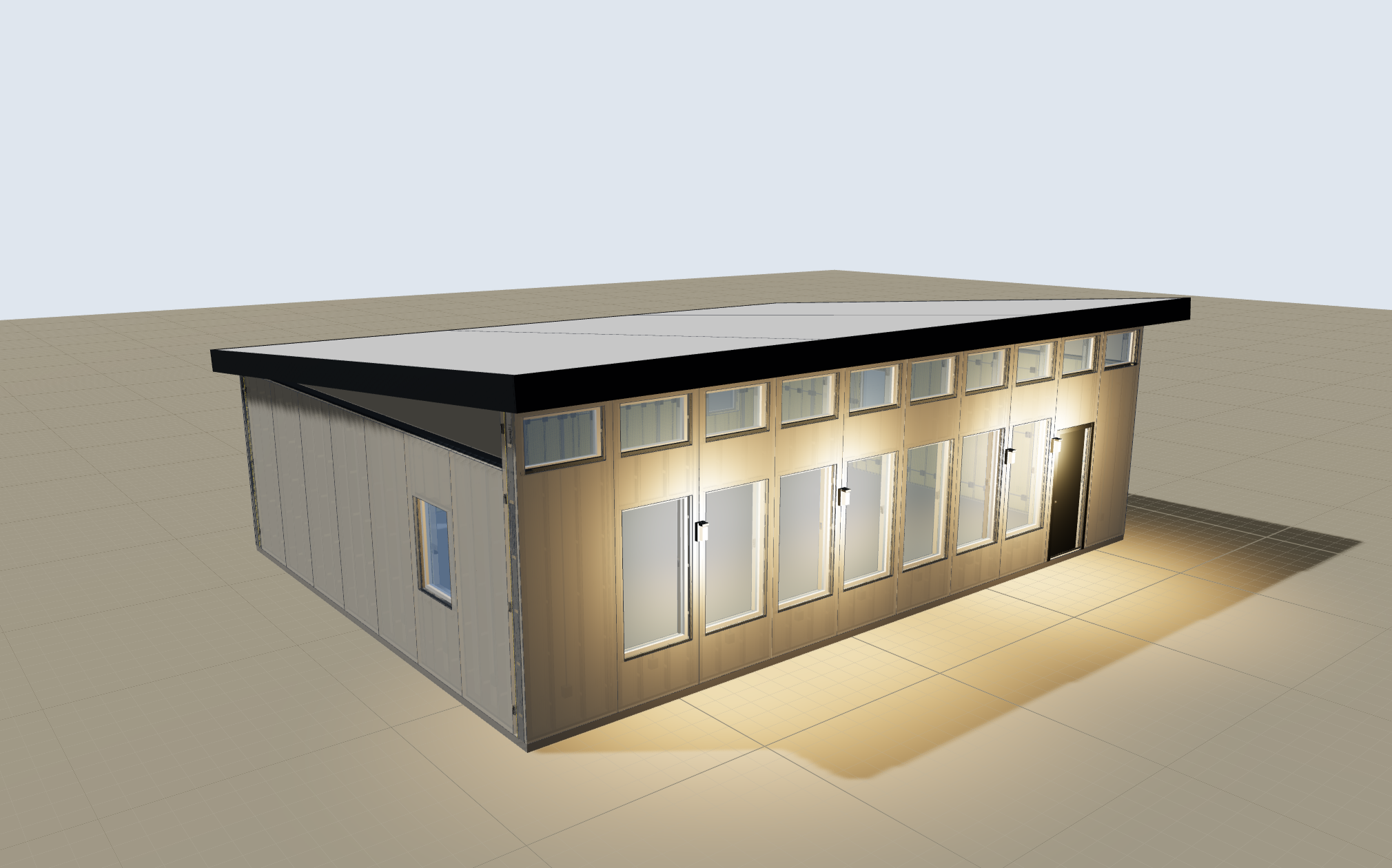

40 × 28 house, corner viewThe 2 bed 2 bath house from the estimate: shed roof to the view, natural grey cladding, charcoal trim, flush door, white frames, wall sconces. 2020 × 1260.1020 KB

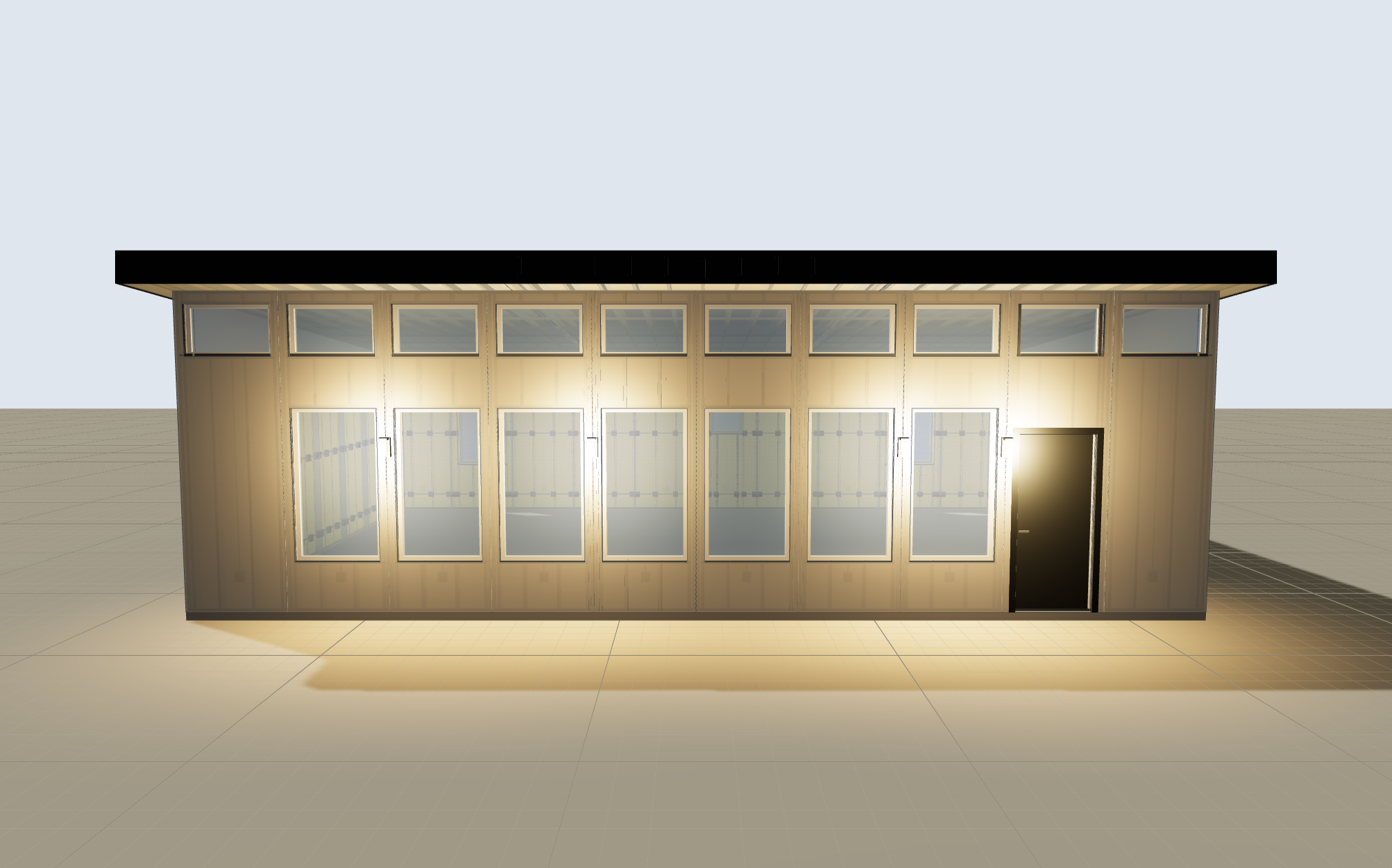

40 × 28 house, front viewStraight-on view of the front wall: entry door, seven view windows and the clerestory band. 2020 × 1260.789 KB

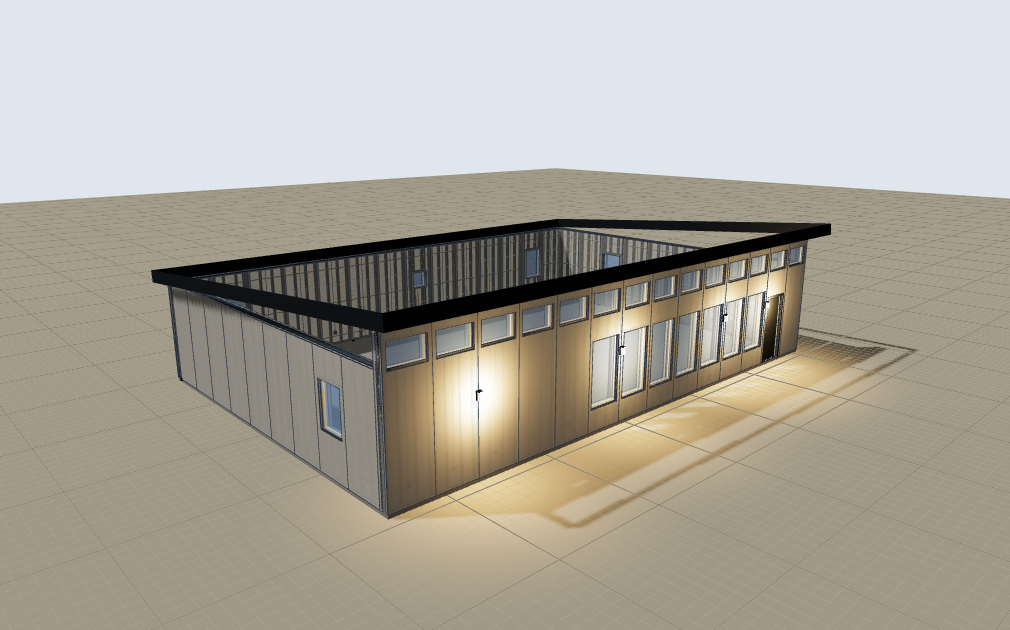

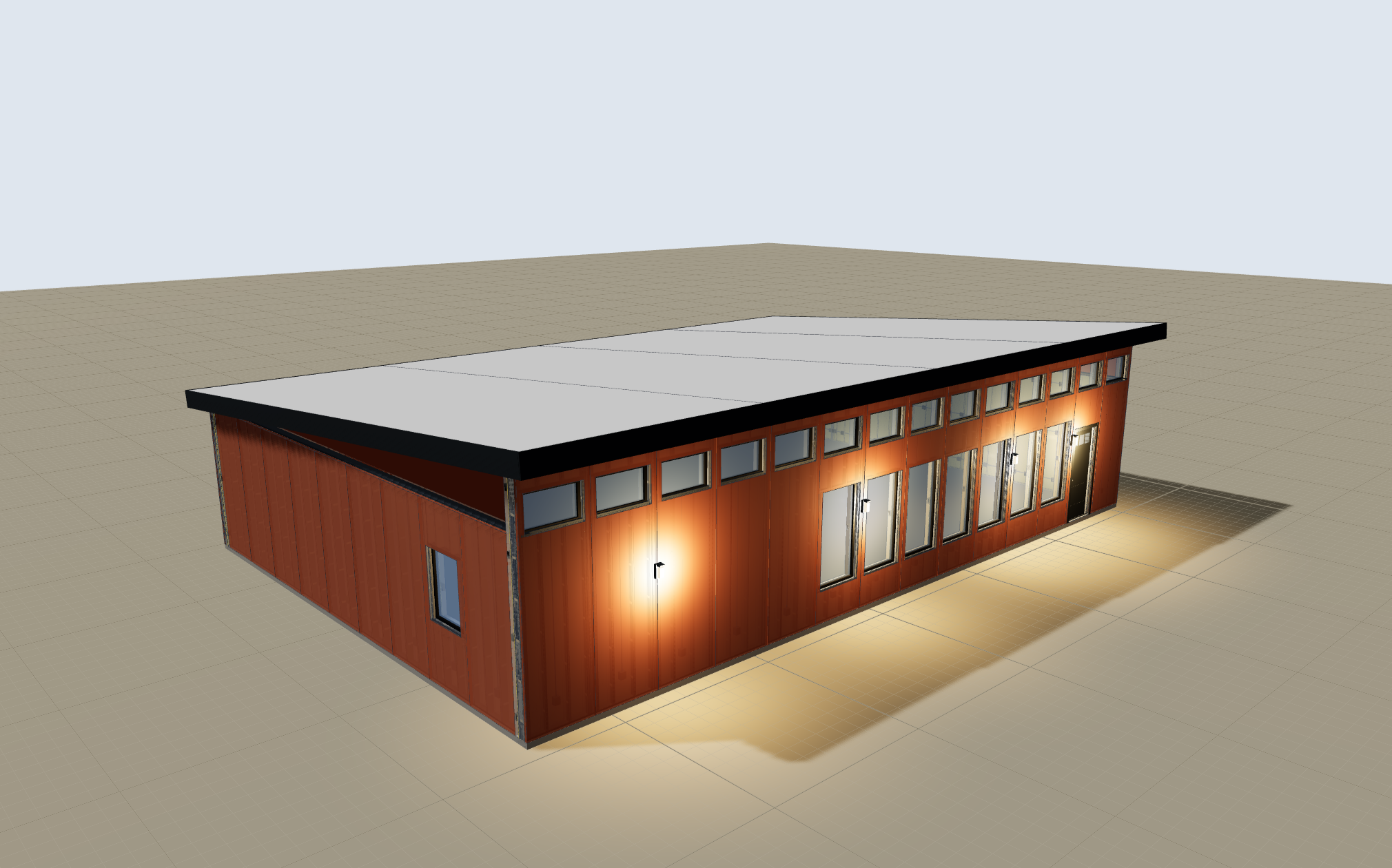

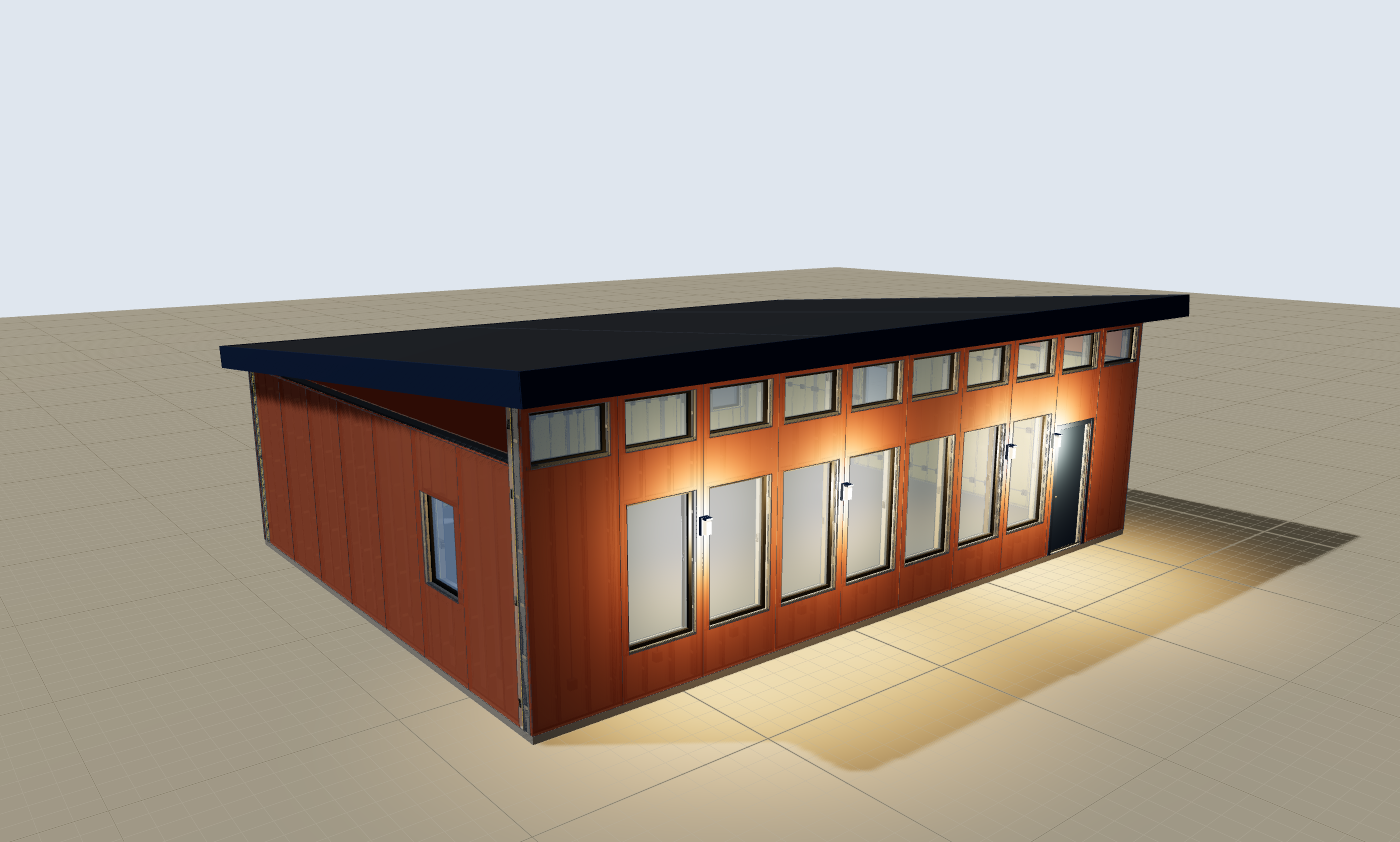

56 × 36 house, terracotta, corner viewFinished house from the front-left corner at dusk lighting, 2020 × 1260.1093 KB

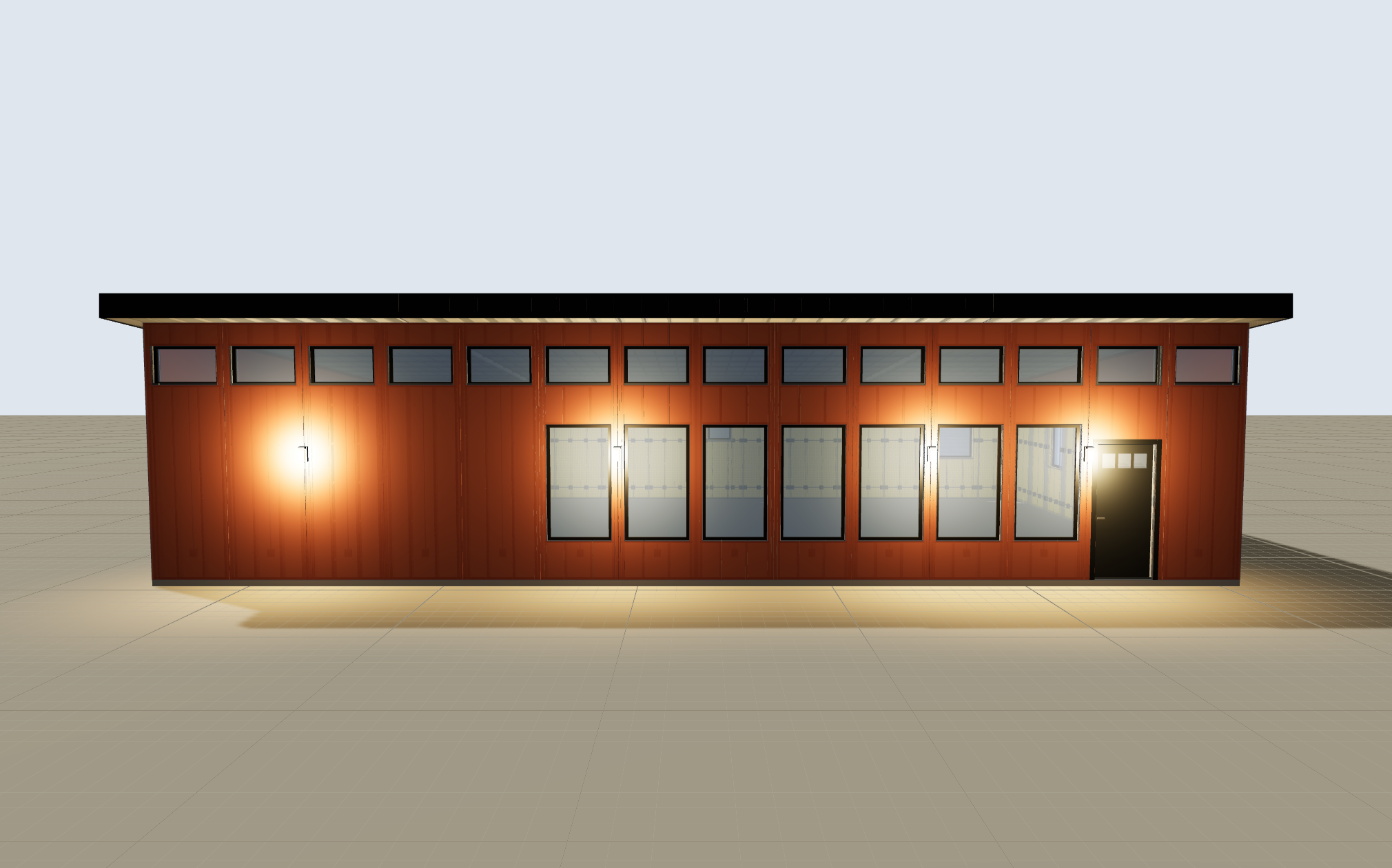

56 × 36 house, terracotta, front viewStraight-on view of the front wall: seven view windows, clerestory band, craftsman entry door, 2020 × 1260.683 KB
Plans and roof options
- Floor plan2 bed · 2 bath open plan drawn to scale on the 4' panel grid, with the door/window schedule from the model.20 KB
- Floor plan SVGVector drawing of the plan.18 KB

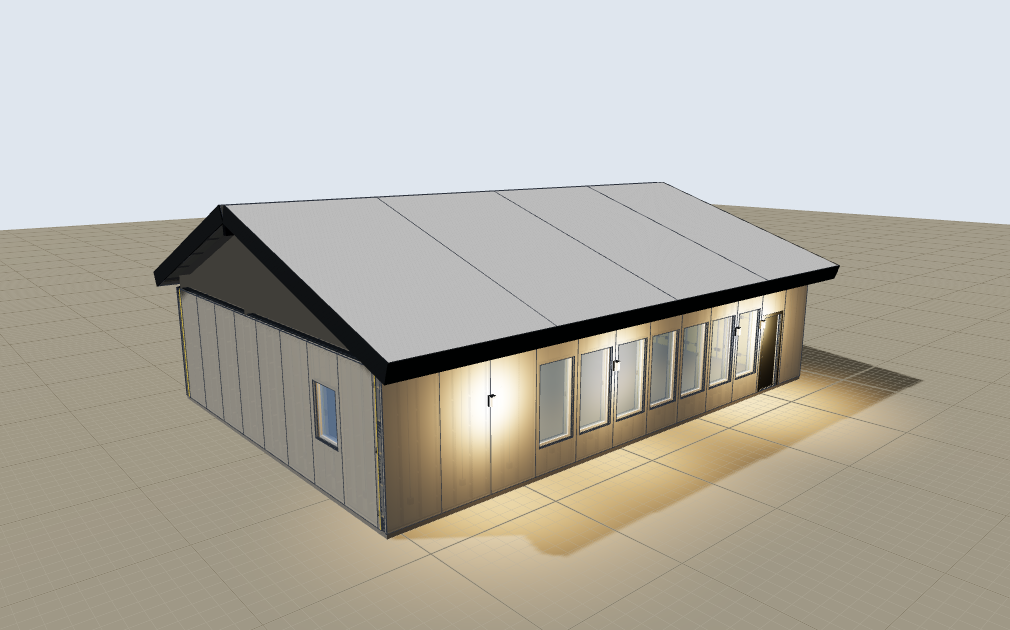

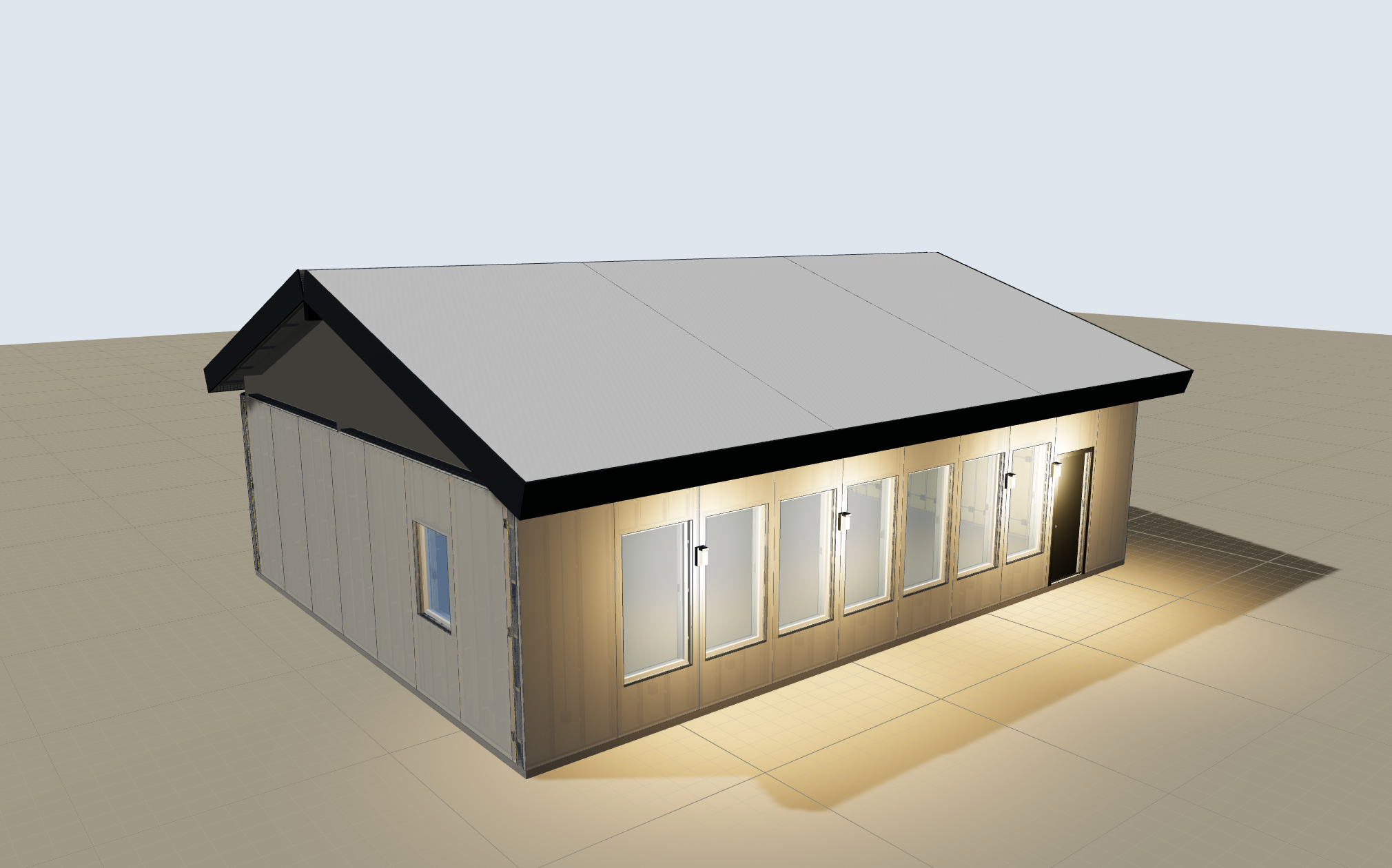

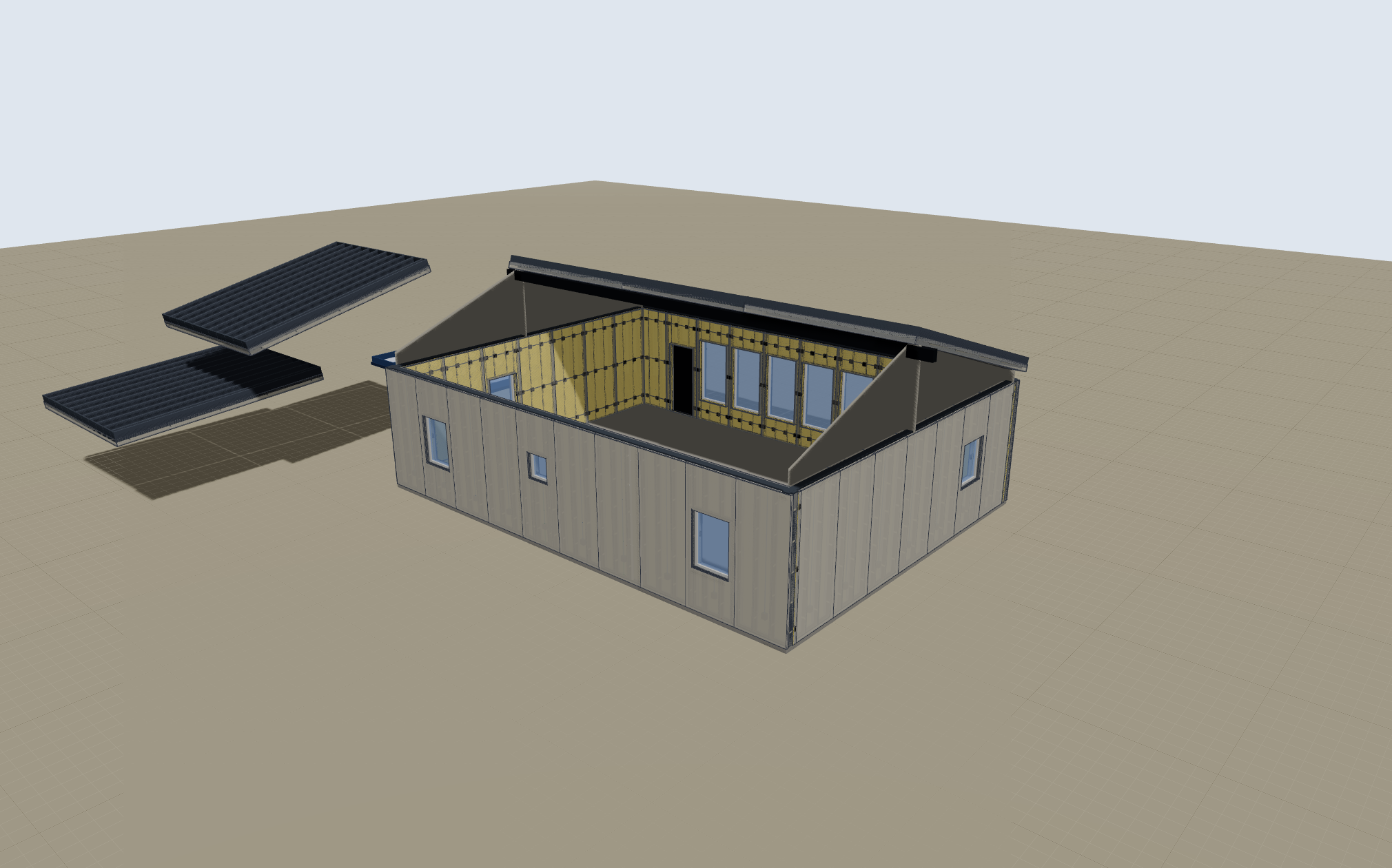

- Three roof optionsFlat, gable and shed compared: spans, panels, concrete, picks and order-of-magnitude cost. Options 1 and 3 are built into the model.17 KB

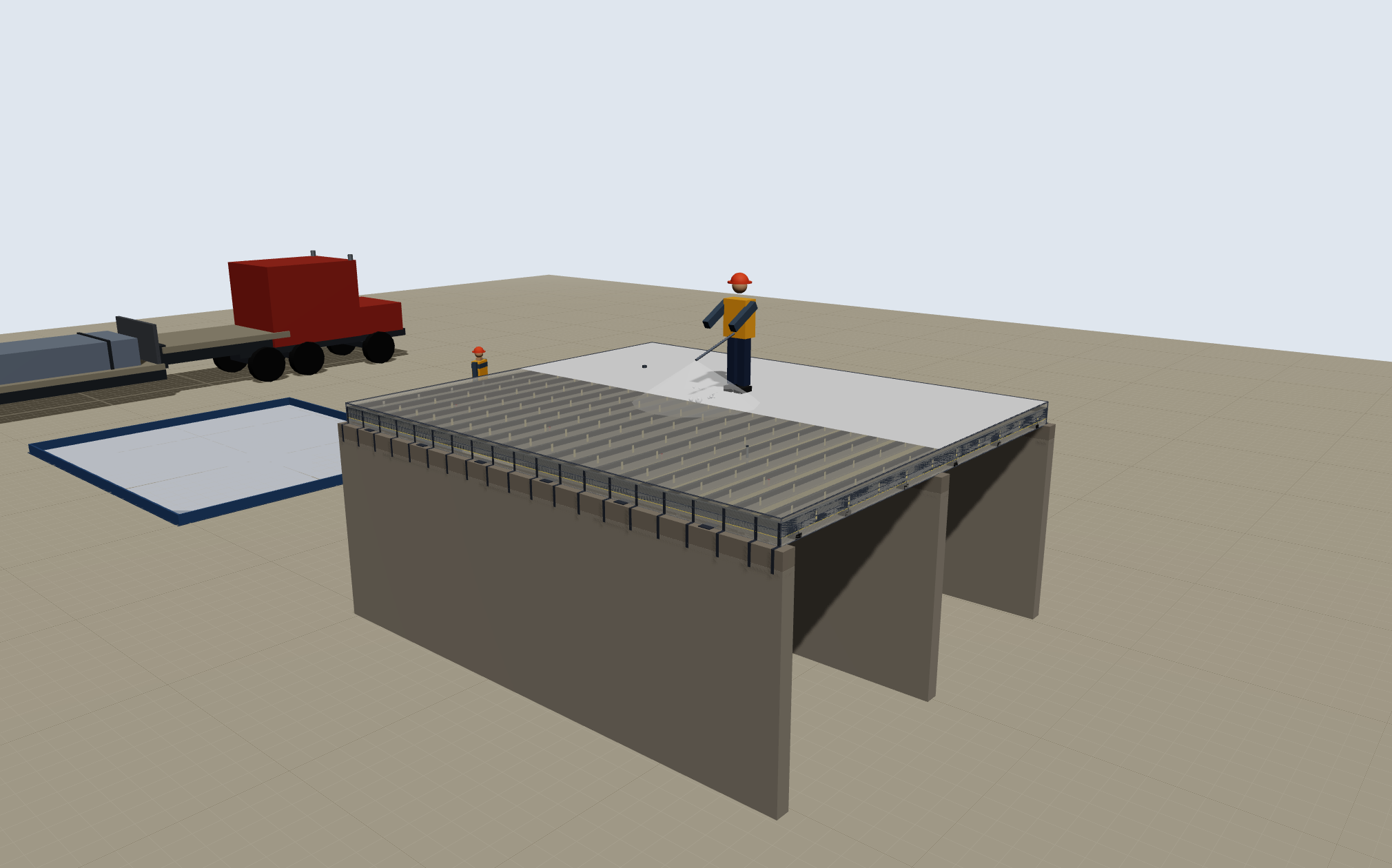

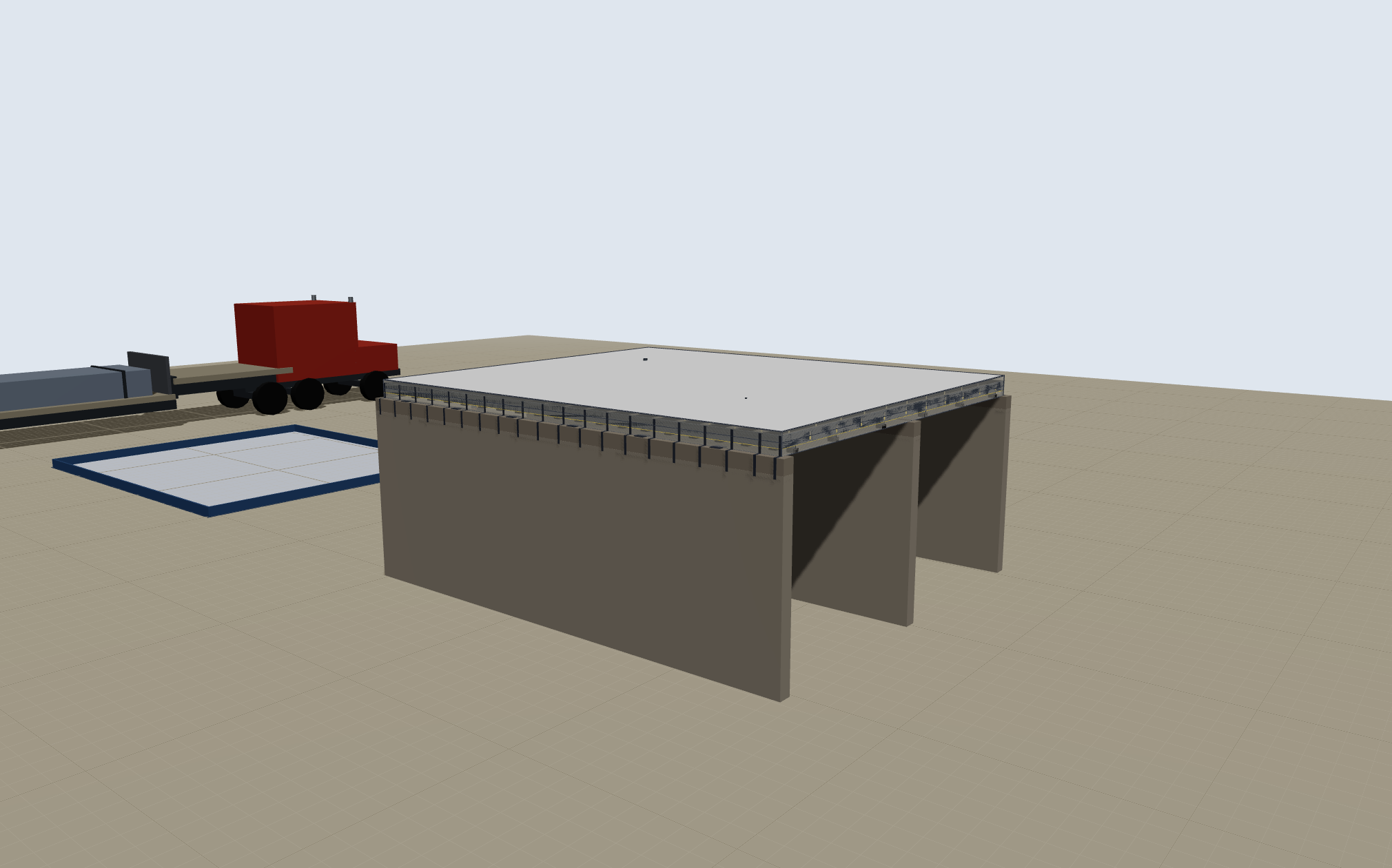

Roof panel — Jamaica studio, 25' × 21'

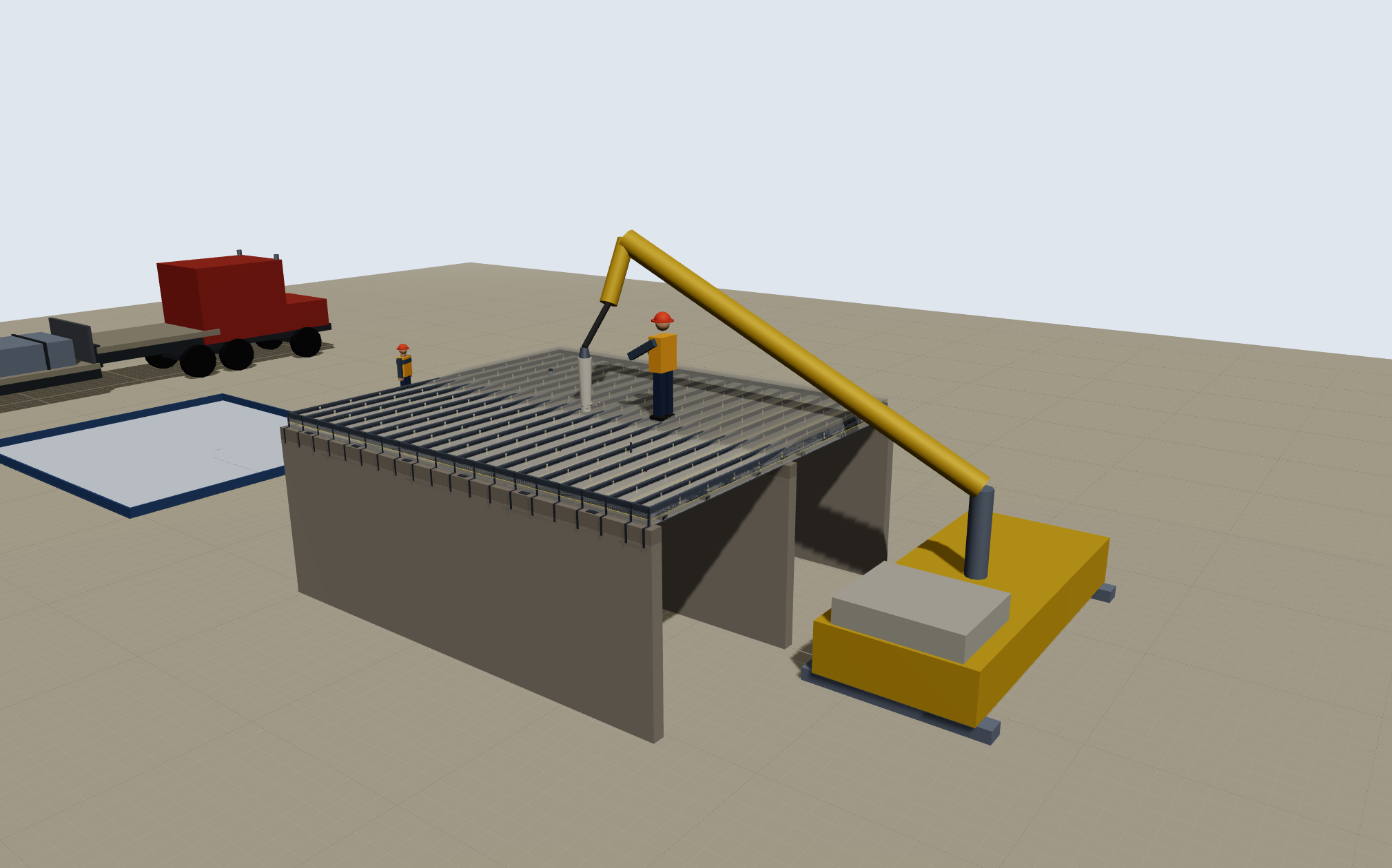

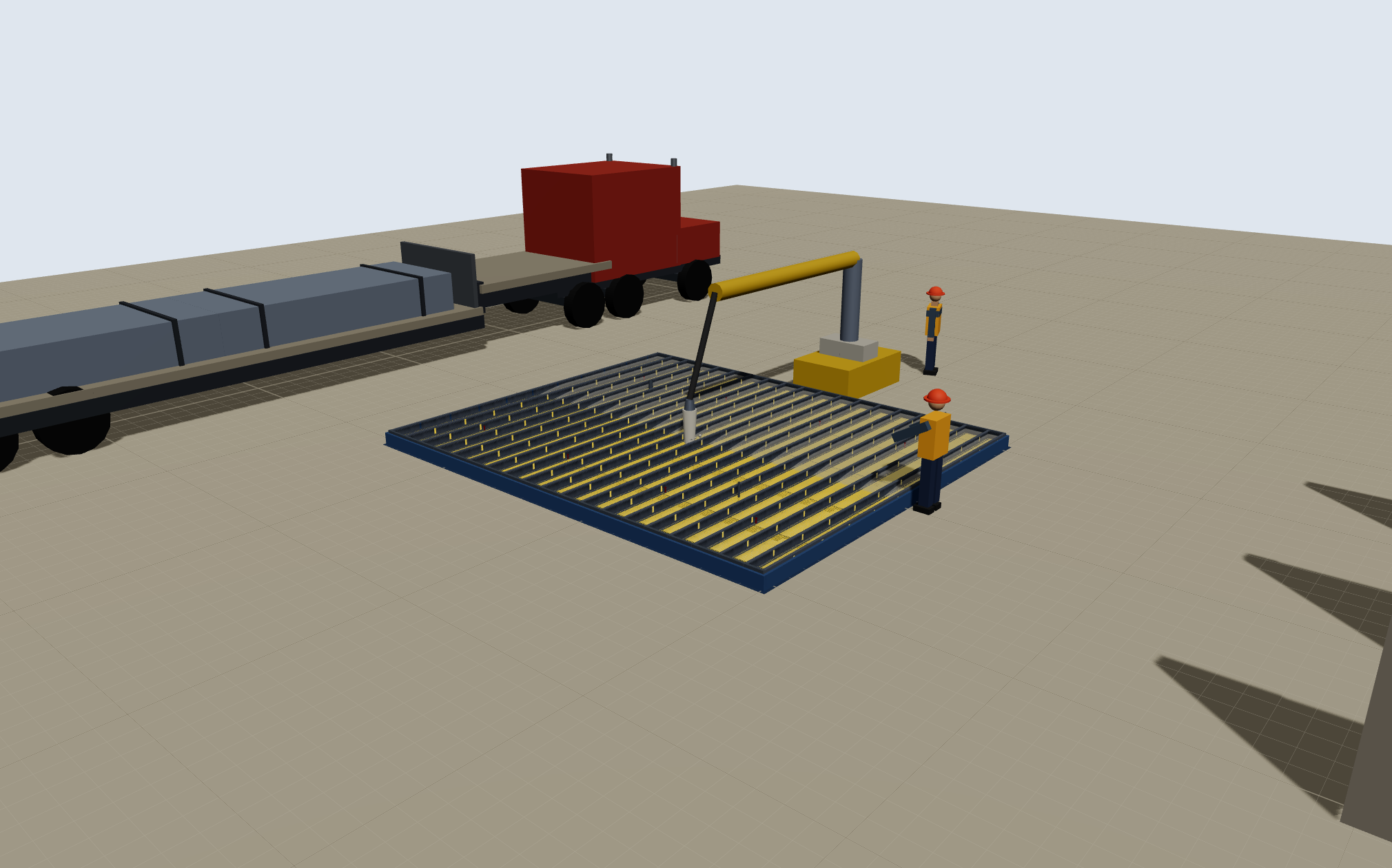

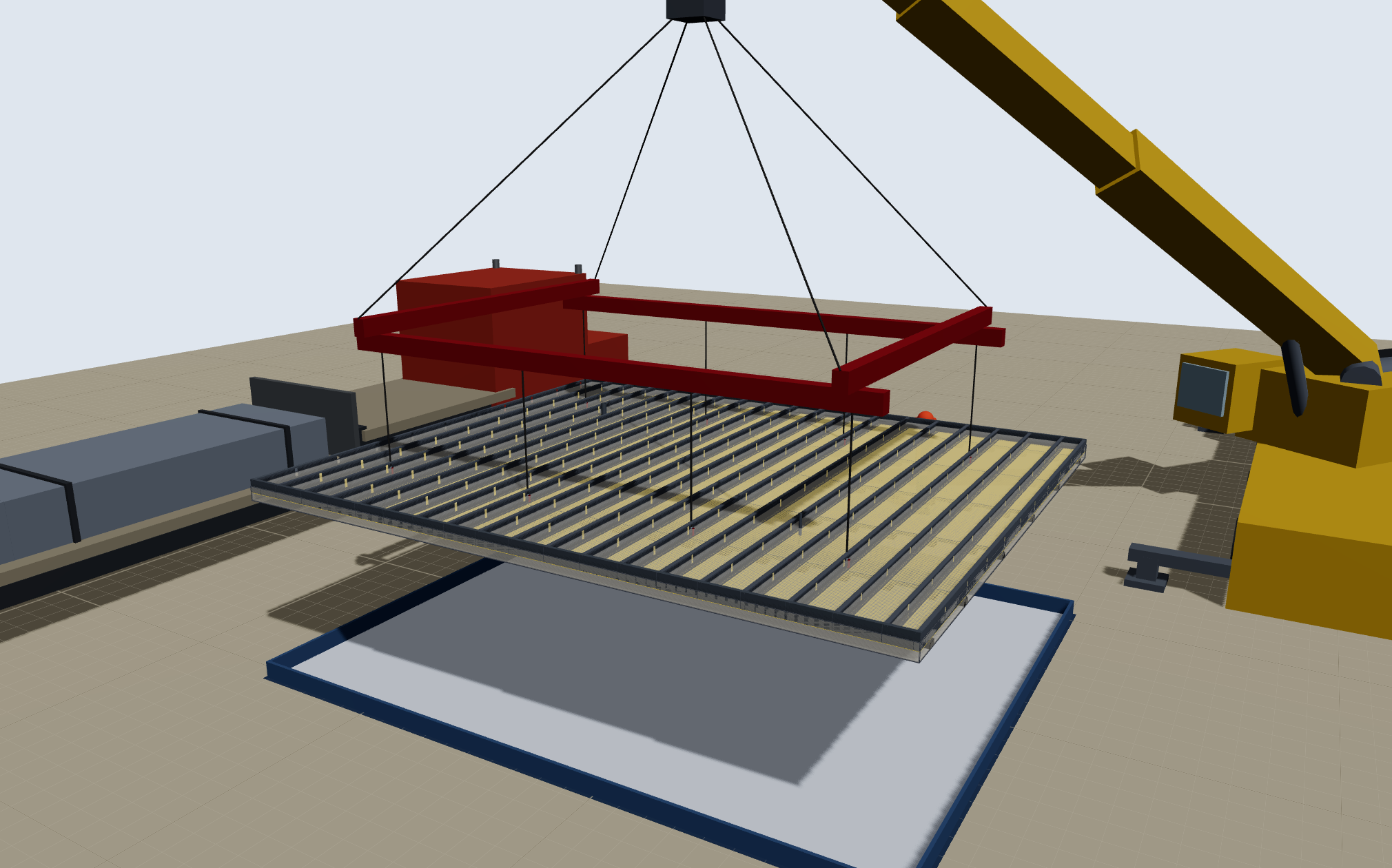

The original lift-in-place roof panel project: cast in a ground form, craned onto printed walls, top pour and membrane.
Estimates (Excel)
Blue cells are inputs, yellow cells are prices and assumptions to replace with quotes; the Summary tab is the page to show.
- House estimate — walls, roof, everything elseComplete house: the wall and roof panels as a manufactured product (Manufacturing tab: plant cost, overhead, margin, sell price and monthly capacity), their site work, foundation choice, plumbing, electrical, heating options, kitchen, baths, flooring, doors and windows, finishes, site and soft costs; materials and labor split.96 KB
- Roof panel estimate (studio)Materials takeoff and cost for the 25' × 21' roof panel, with the floor options tab.33 KB
